304 Stainless Steel Wave Shaker Screen For Oil Industry
304 Stainless Steel Wave Shaker Screen Description:
Shaker screens, also known as shaker screen cloth or mud screens, are core screening equipment used for solid-liquid separation in oil drilling mud and are widely used in drilling fluid processing. Primarily made of stainless steel wire and steel plates, they come in various configurations, including frame, flat, and corrugated types. They range in mesh sizes from 12 to 325, with sizes including 1050 mm × 695 mm and 700 mm × 1165 mm. The composite structure of multiple layers of mesh allows for tiered screening, improving processing efficiency.
304 Stainless Steel Wave Shaker Screen Specifications:
| Technical Parameters of 3D Shaker Screen |
| Item | Mesh | Dimension(L x W) | Approx Weight | Screen Layer | Screen Material | Frame Material |
| PSS-1 | API 20-400 | 1050X695mm | 6.6kg | 2 or 3 | SS 304/316 | carbon steel |
| PSS-2 | API 20-400 | 1053x697mm | 5.6kg | 2 or 3 | SS 304/316 | carbon steel |
| PSS-3 | API 20-400 | 710x626mm | 4.8kg | 2 or 3 | SS 304/316 | carbon steel |
| PSS-4 | API 20-400 | 567x1070mm | 5.2kg | 2 or 3 | SS 304/316 | carbon steel |
| Note:Other specifications also be customized |
304 Stainless Steel Wave Shaker Screen Competitive Advantage:
1.Light-weight screen panels for fast, user-friendly screen changes.
2.Easy screen inspection, removal, and installation.
3.Maximize the solids removal capabilities.
4.Increase shaker capacity and reduce mud loss.
5.API RP 13C (ISO 13501) compliant.
6.Adequate inventory in the shortest time to meet customers' demand.
7.Warranty Period: 1 year.
8.Working Life: 400-450 hours.
304 Stainless Steel Wave Shaker Screen Application:
3D shaker screen is used as replacement screen for various shakers. It is used in shale shakers to filter drilling fluids, mud, oil and other materials in the oil extraction, oil industry, drilling operations, solid control system.
Our Company Information:
Hebei Reinforce Pipeline Mesh Co., Ltd is an enterprise focusing on deep-sea energy pipeline protection. It is located at No.6, Ruilian Industrial Zone B, Shuguang East Street, Xicheng Industrial Zone, Raoyang County, Hengshui City, Hebei Province. Our company takes the steel wire mesh for concrete weight coating of submarine oil and natural gas pipelines independently developed and produced as its core product. We also produce safety rope nets around platforms, steel gratings, and vibrating screens.
Product Tags:
|
|

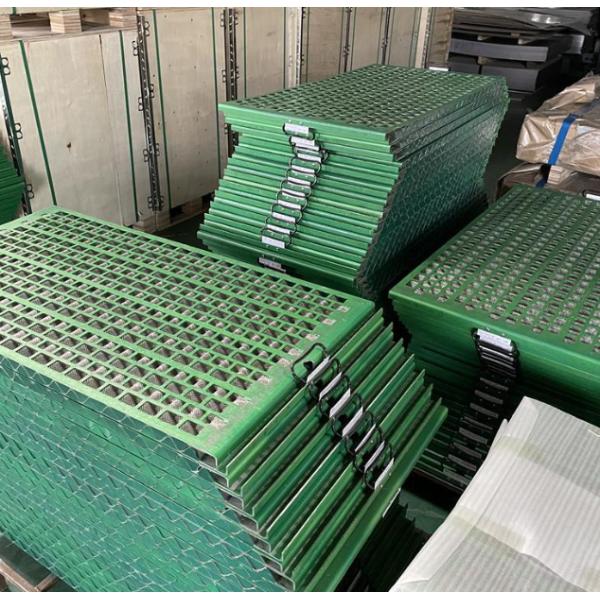

304 Stainless Steel Wave Shaker Screen For Oil Industry Images
|
